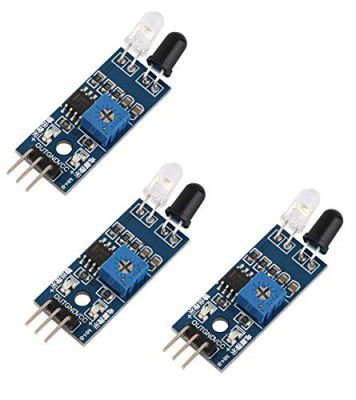

Robotbanao Infrared Obstacle Avoidance IR Sensor Module With LED Indicators - LM393 Chip - Proximity Sensor - Pack Of 3

About Robotbanao Infrared Obstacle Avoidance IR Sensor Module With LED Indicators - LM393 Chip - Proximity Sensor - Pack Of 3

• Infrared Obstacle Avoidance IR Sensor Module (Active Low) contains a pair of infrared transmitting and receiving tubes. When the transmitted light waves are reflected back, the reflected IR waves will be received by the receiver tube. The onboard comparator circuitry does the processing and the green indicator LED comes to life.
• Mounting hole | Adjustable Range Detection | LED Indicators | Built-in Ambient Light Sensor | Infrared transmitting and receiving tubes | Onboard comparator circuitry | Easy to assemble | Easy to use
• LxWxH : 48 x 14 x 8 mm
• The IR sensor module can be widely used for robot obstacle avoidance, obstacle avoidance car assembly line count, black-and-white line tracking and many other occasions. This sensor module can be used for obstacle detection in autonomous robots and cars, in positional feedback for control system, industrial safety system, wheel encoder etc.
• Main Chip : LM393 Operating Voltage (VDC) : 3.6 ~ 5 Average Current Consumption (mA) : 0.06 Detection Angle : 35 ° Distance Measuring Range : 2 - 30 cm
